Breathing Filters

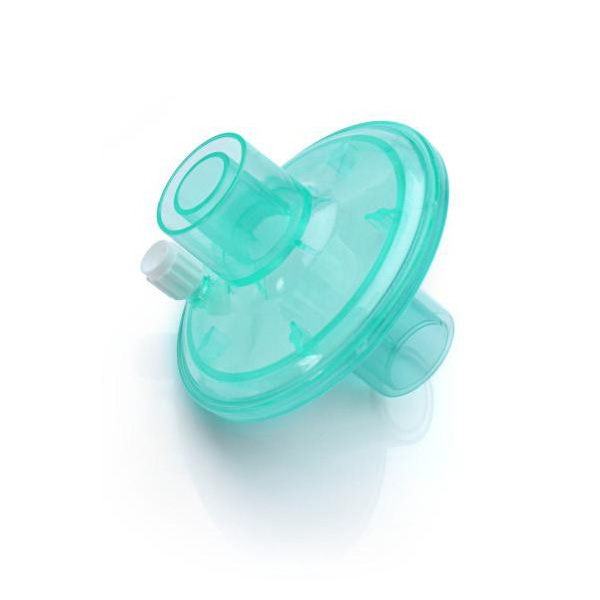

Disposable Bacterial and Viral Filter
- Product description: Disposable Bacterial and Viral Filter
Features
● Compatible to all kinds of ISO-standard tube
● Low Breathing resistance
● Block particles, bacteria and other pathogens in
● Anesthesia and breathing circuit from entering the
● Respiratory system
● VFE≥99.99% BFE≥99.999%
● Lightweight, reducing torque on tracheal connection

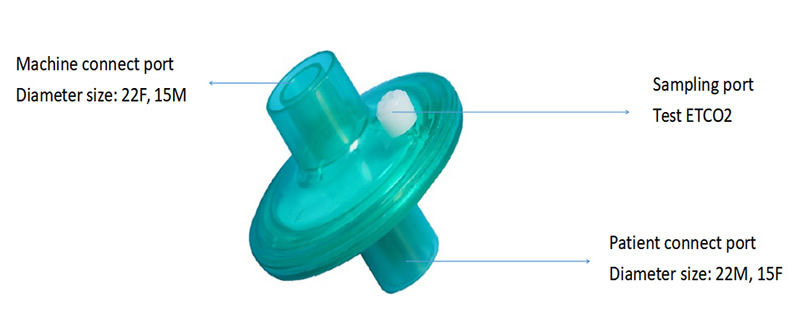

● Gas sampling port with cap for easy, safe monitoring
● Of expired gases
● Transparent shell for good visualization of any
● Potential blockage
Parameters
| Description | Bacterial/Viral Filter (BV) |
| Humidity Output | N/A |
| Filtration Efficiency | BFE 99.9-99.999 % ,VFE 99-99.99% |
|
Resistance @ 30 LPM |
<1.2cmH2O, (BFE99.999%,VFE 99.99% ) |
| <0.6cmH2O, ( BFE 99.9%, VFE 99% ) | |
|
Resistance @ 60 LPM |
<2.6 cmH2O, ( BFE 99.999%, VFE 99.99% ) |
| <1.5 cmH2O, ( BFE 99.9%, VFE 99% ) | |
| Dead space | 32ml |
| Tidal Volume Range | 250-1500ml |
| Connections | 22M/15F-15M/22F |
| Gas Monitoring Luer Port with retainer strap | Yes |
| Weight | 25±3g |
